Key Features and Benefits:
- Reliability You Can Count On – engineered by Epson for demanding
- Exceptional Image Quality – crisp photo-quality images; up to 1200 dpi resolution with variable droplet sizes.
- Seamless Integration – compatible with ZPL II, major middleware, SAP, Windows®, Mac® and Linux.
- Compact, Robust Design – dust- and water-resistant for high-duty-cycle
- Wi-Fi Connectivity1 (sold separately)
- Durable, High-Quality Labels –meets BS-5609 certification.

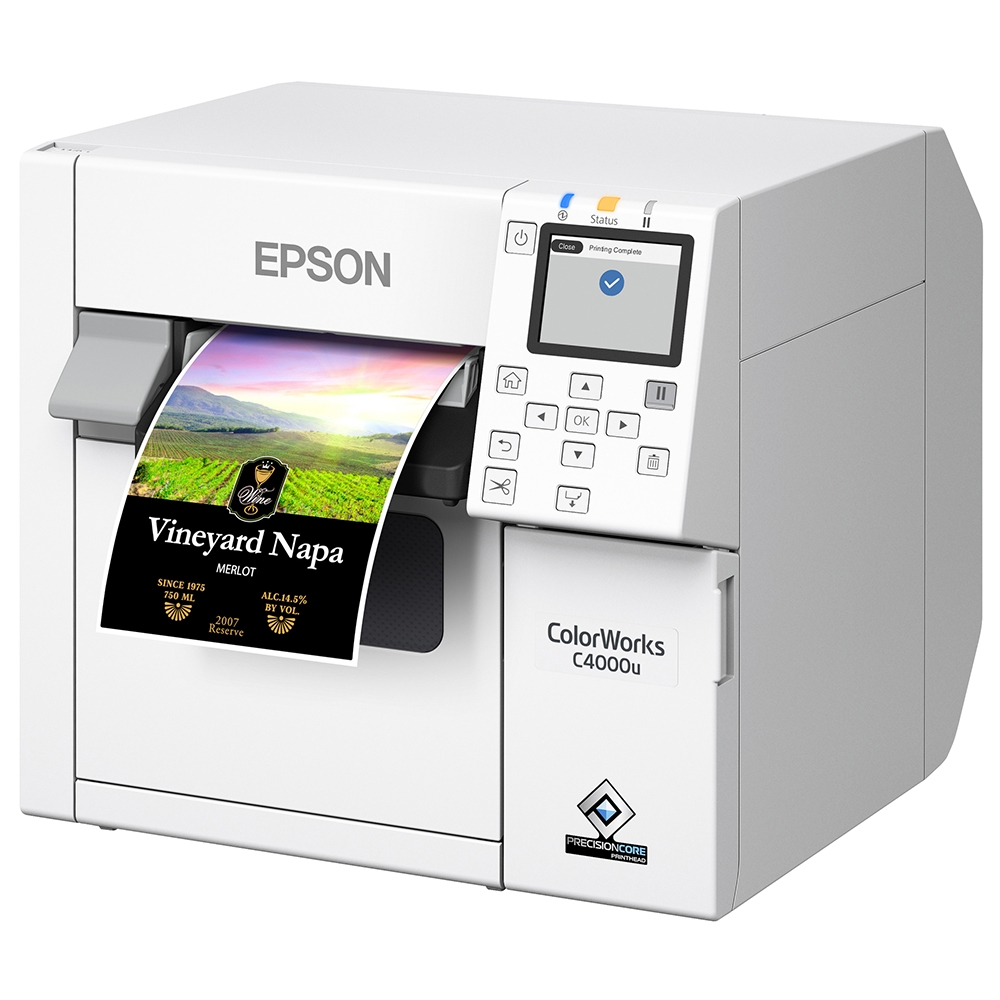

Printer specifications:
Ink Type: UltraChrome® DL pigment ink.
Ink Colors: CMYK in individual cartridges.
Control Panel: 2.7" full-color graphic display and 9-key pad allow for local configuration and operation.
Indicators: Power, status and pause LEDs, beeper.
Color Correction: ICC color profiles, RGB spot color substitution, driver-based color adjustment.
Print Resolution Modes & Speeds:
Max Speed: 300 x 600, 3.94 ips;
Speed: 600 x 600, 2.76 ips;
Normal: 600 x 600 1.89 ips;
Quality: 600 x 1200 0.71 ips;
Max Quality: 1200 x 1200 0.31 ips
Print Width: 4.25" (108 mm) max.
Media:
Media Sources: Internal roll-fed, rear-feed fan fold, external rear-powered unwinder.
Media Construction: Standard die-cut label with or without a black mark, die-cut label with matrix on and black mark, continuous tag stock with or without a black mark, continuous label with or without a black mark, wristband with a black mark.
Media Types: Plain paper, Matte paper, Synthetic label, Gloss paper, Gloss film, Wristband.
Width (including liner): Roll: 1.0" - 4.41" (25.4 - 112mm); Fan fold: 2.0" - 4.41" (50.8 - 112mm).
Thickness: 0.0033" - 0.009" (0.084mm - 0.229mm).
Label Length: Max. 16" (406.4 mm), Min. 0.31" (8mm).
Internal Roll Size: Outer diameter: 4" (101.6 mm) max.; Inner core diameter: 1.75" - 2.25" (44 - 57 mm).
Die-cut Label Gap: 2 mm - 6 mm.
Inner Core Diameter: 1.75" - 2.25" (44 - 57 mm).
Media Sensors: Gap, black mark, media cut.
Black Mark Size: Min. 0.51" x 0.16" (13 mm x 4 mm) (W x H).
General:
Interfaces: Ethernet 1000BASE-T/100BASETX/10BASE-T USB 2.0.
Operating System: Windows or Mac
Remote Management Tools: Epson Device Admin, WebConfig, Epson Monitoring Tool, Printer Setting Utility, Epson Deployment Tool, EpsonNet Setup Manager, EpsonNet Config SE, Epson Firmware Updater.
Dimensions (W x D x H):
Printer: 12.2" x 11.1" x 11.2" (310 mm x 283 mm x 285 mm); Shipping: 15.6" x 17.6" x 18.5" (396 mm x 446 mm x 469 mm).
Acoustic Noise: Approx. 58 dBA.
